4.5KW Wire Straightening And Cutting Machine

Brand Name : FZ

Model Number : GT3-20

Certification : CE，ISO

Place of Origin : Hebei, China

MOQ : 1

Price : discuss

Supply Ability : 20SETS / MONTH

Delivery Time : 15days

Payment Terms : Western Union, L/C, T/T

Packaging Details : Plastic films or can be customized.

Video： : Provided

Voltage : 380V/440V/415V/220V

Cutting length : 200-1000mm（adjustable）

Wire diameter range : 1.6-3.5mm

Straightening speed : 100-120m/minute

Dimension(L*W*H) : 5000*900*1350mm

Core Components : PLC, Bearing, Gearbox, Motor, Pressure vessel, Gear, Touch Screen,

Weight (KG) : 900

Warranty of core components : 1 year

Products name : CNC straightening and cutting steel wire machine

Straighteness : ±2mm/m

Contact Now

Hight Speed Wire Straightening And Cutting Machine

1. This straightening machine is one of the main products of our company, with high cost performance, high precision and fast speed.
2. Drive mode: wire feeding is driven by servo motor, which ensures the speed and precision. The straightening drum is driven by frequency conversion brake motor, which ensures the sensitivity of the pause, the stopping speed is fast and the damage to the motor is small. The cutter is controlled by the cylinder, which ensures the shear strength and saves energy.
3. For 2-3.5mm wire diameter, there will be no running.
4. Control: integrated control cabinet and operation, PLC programming control, touch screen operation interface, can remember specifications, shear length is set length, non-top rod shear. Overall to make the operation more user-friendly, more convenient adjustment.
5. The aligning parent is made of alloy material, with special treatment, which is durable and makes the aligning wire scratch less (slight thread scratch) without damaging the surface of the wire.

NO.	NAME	PARAMETER
1	Wire diameter	2.0-3.5mm
2	Length	500-2000mm(adjustable)
3	Length error	＜±1mm
4	Speed	100-120m/min
5	Straightenss	＜2mm/m
6	Material	Q235,Q195,Galvanized wire
7	Cutting knife material	Alloy
8	Feed motor power	4.5KW
9	Motor power of shuttle	3KW
10	Power supply voltage	380V 3Phas 50Hz
11	Air pressure	0.6-0.8mpa
12	Equipment size	46205002230
13	Color	Gray,Yellow

4.5KW Wire Straightening And Cutting Machine

Product Tags:

4.5KW Wire Straightening and Cutting Machine

Q195 Wire Straightening and Cutting Machine

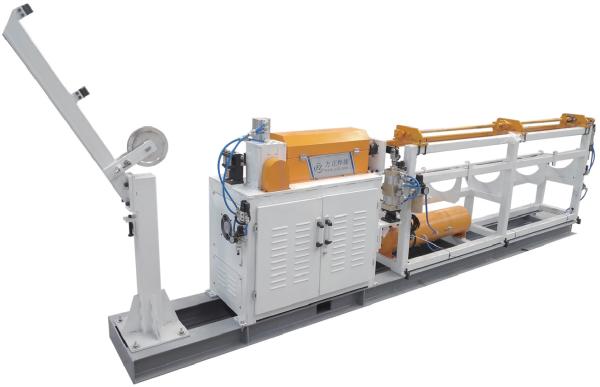

4.5KW Wire Straightening And Cutting Machine Images
